FILTER CARTRIDGE CODE: BF-CA-17001
CHARACTERISTICS

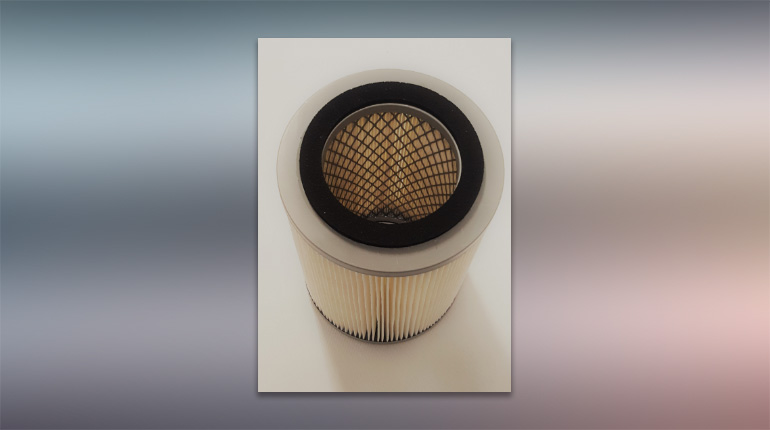

The BF-CO-17001 cartridge presents a pleated paper filter medium glued to two end caps. It is internally supported by a steel wire mesh that guarantees resistance, and the possibility of backwashing if needed. It can operate under high throughputs and fluid flows maintaining low pressure drops, it can be made with a wide variety of filtrating grades based on the client’s requirements.
Our production flexibility allows us to produce cartridges of any dimension from 10cm to 2m of height, we also present a wide variety of gaskets and end caps to make sure that the cartridge will fit into the desired industrial plant.
TECHICAL DATA
- Maximum operating temperature: 80°C
- Pressure drop: 0.04 bar
- Filtration grades available*: 5 – 25 µm
* depends on chosen filtering medium
AVAILABLE MATERIALS
Filtering medium:
Polyester
Polypropylene
Cellulose
End caps:
Galvanized steel
Foam/Plastisol
Glue:
Epoxy resin
Plastisol
Gasket:
Viton
Bunan
EPDM
MAJOR APPLICATIONS
- Vacuum pumps
- Industrial blowers
- Gas filtration
- Dry air filtration
made in italy
CUSTOM MADE FILTERS
All our products are available in standard and non-standard dimensions, we are always available to modify our products or create entirely new filtrating solutions to satisfy the client’s requests
RESEARCH AND EXPERIENCE
THE BEST PRODUCT ON THE FILTRATION MARKET
FILTER CARTRIDGE CODE: BF-CA-17001
